Tire Debeader

Photo Gallery

Description

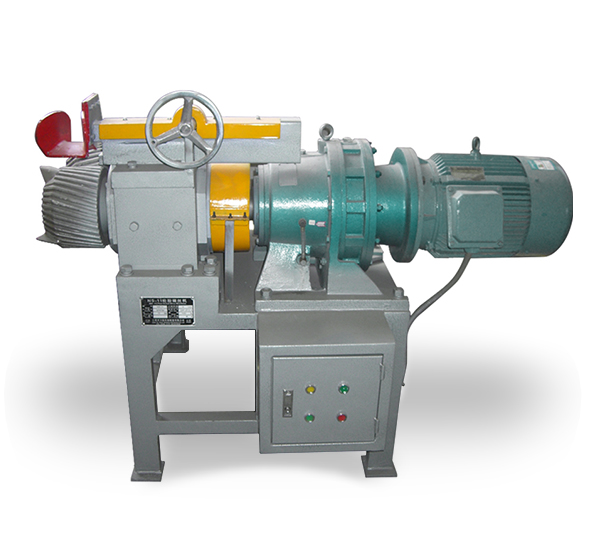

The Tire Debeader is a machine which efficiently separates the steel wires of a tire from the rubber. The machine itself is composed of a frame, reducer, roller and adjusting device, with two rollers rotating in opposite directions through a reducer and gear box. The steel wires are separated from the rubber through a process of two rollers which powerfully crush materials between them, rotating at different speeds to maximize crushing strength. As bead and bead wires differ between different brands and models of tires, the Tire Debeader is fully adjustable, using a wheel adjustment system to adjust the distance between the two rollers to differing tires' specifications.

Applications

Specification

Model	MH-15
Motor Power	15kw
Voltage	380V, 50HZ
Rotate speed	18r/min
Suited Tyre	tyre need to be pre-cutted by cutting machine
Roller Material	Cast steel+alloy steel
Capacity	1-2min/tyre
Motor Brand	Daqiao(China)
Electrical Element	Delixi(China)
Control Type	Button
Weight	1500kgs
Overall Size	1600*1000*1300mm
Guarantee period	One year
Lead time	60days for one set
Package	1500kg/2cbm
